Revised Local Reference (RLR) Diagram for FORTALEZA

Station ID: 559

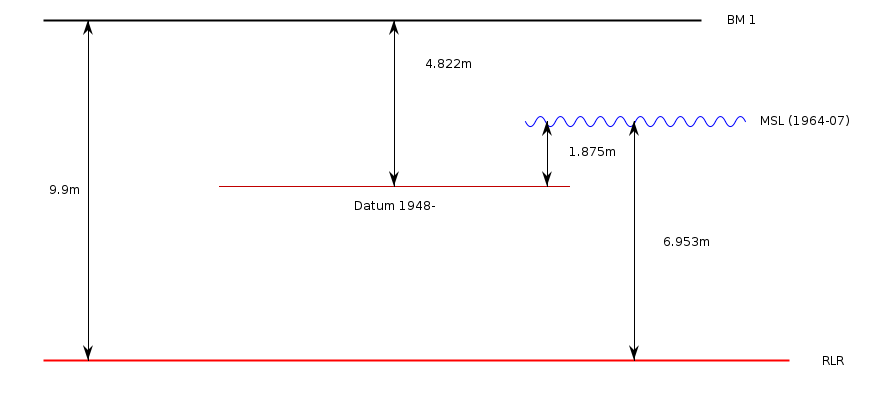

RLR diagram based on the information in the datum section below

If the image above appears blurry, or you would like to see a larger image, please view the full-sized image of the RLR diagram.

Datum information

Add 5.078m to data values 1948-1958 to refer to RLR
Add 5.078m to data values 1961 onwards to refer to RLR
RLR is 9.900m below primary benchmark BM 1
