Revised Local Reference (RLR) Diagram for ST. GEORGES / ESSO PIER (BERMUDA)

Station ID: 368

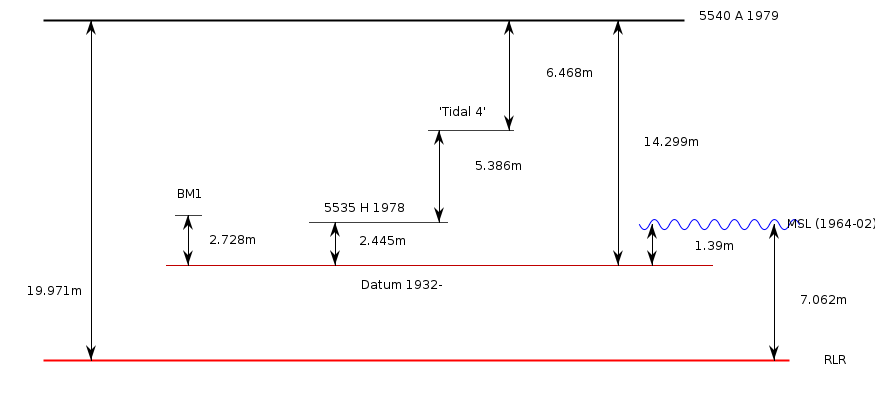

RLR diagram based on the information in the datum section below

If the image above appears blurry, or you would like to see a larger image, please view the full-sized image of the RLR diagram.

Datum information

Add 5.672m to all data values to refer to RLR
RLR is 19.971m below primary benchmark 5540 A 1979

Ellipsoidal information from SONEL (explanation)

GNSSSolutionHeightVelocityEpochGNSS StartGNSS EndDistance
BRMUGT3-39.368 ± 0.022-1.16 ± 0.302020.00001993-03-232020-09-27739
BRMUULR7a-39.332 ± 0.022-0.67 ± 0.332020.00001993-03-232020-09-27739
BRMUNGL14-39.336 ± 0.021-0.86 ± 0.412020.00001993-03-232020-09-27739
BRMUJPL14-39.335 ± 0.021-0.95 ± 0.172020.00001993-03-232020-09-27739
