Revised Local Reference (RLR) Diagram for CENDERING

Station ID: 1592

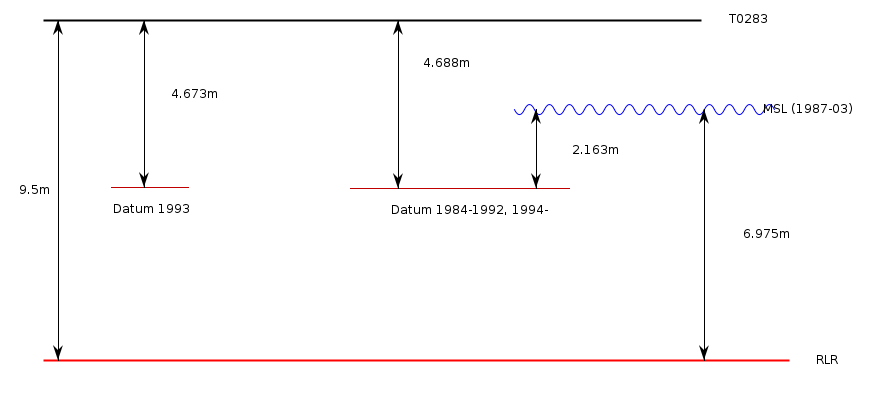

RLR diagram based on the information in the datum section below

If the image above appears blurry, or you would like to see a larger image, please view the full-sized image of the RLR diagram.

Datum information

RLR(1987) is 9.5m below BM T0283
Add 4.812 to data 1984-1992 values to refer to RLR(1987)
Add 4.827 to 1993 data values to refer to RLR(1987)
Add 4.812 to data values 1994 onwards to refer to RLR(1987)
