Revised Local Reference (RLR) Diagram for PELABUHAN KELANG

Station ID: 1591

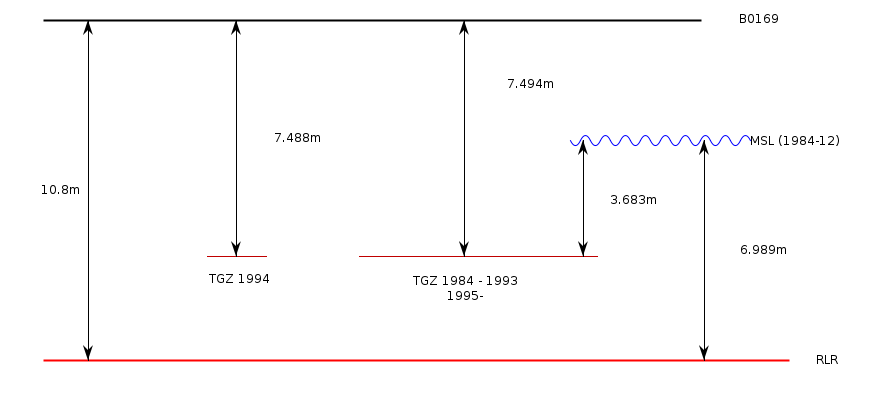

RLR diagram based on the information in the datum section below

If the image above appears blurry, or you would like to see a larger image, please view the full-sized image of the RLR diagram.

Datum information

Add 3.306m to data 1984-1993 to refer to RLR (1984)
Add 3.312m to data 1994 to refer to RLR (1984)
Add 3.306m to data 1995 onwards to refer to RLR (1984)
RLR (1984) is 10.8m below BM B0169
